Let's compare
RH-12FRH
Mitsubishi Electric Robotics
Not yet assessed
- Height
- —
- Payload
- —
- Verified autonomy
- not assessed
- Real deployment
- not assessed
- Status
- —
- Price
- —
RH-12FRH

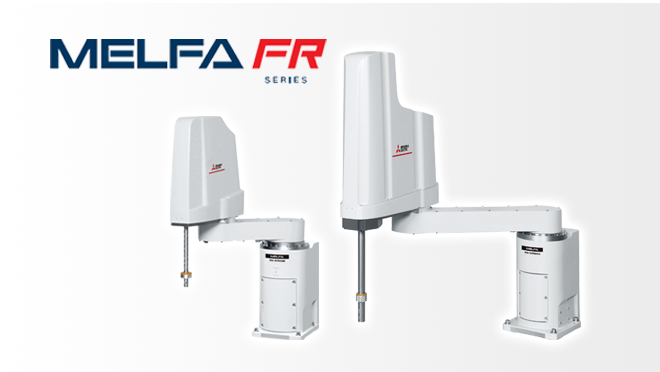

Mitsubishi Electric RoboticsThe RH-12FRH is a Mitsubishi Electric MELFA-brand 4-DOF SCARA industrial robot with a 12 kg payload, 850 mm maximum reach, and ±0.015 mm repeatability, controlled by a CR800-D (or CR800-12HD) controller. It is the third-generation SCARA in the RH-FR series, replacing the RH-12SDH, and is designed for high-speed pick-and-place and assembly tasks with a 0.3 s cycle time. The robot operates autonomously once programmed — executing its manipulation tasks without a human performing or driving the task — though it requires trained operators for teaching and maintenance. Several extracted facts relate to unrelated systems (RH5 humanoid from DFKI, RH20T-P dataset, RH-P12-RN gripper from ROBOTIS) and are not attributable to the RH-12FRH.
Availability
Specification
- payload
- 12 kg
- max_reach_radius
- 850 mm (Arm1: 525 mm + Arm2: 325 mm)
- robot_weight
- 69 kg (RH-12FRH8535N-D variant); ~41–45 kg for other arm-length variants of RH-12FRH
- joint_speeds
- J1: 280°/s, J2: 450°/s, J3 (Z): 2400 mm/s, J4 (θ): 2400°/s
- max_tcp_speed
- 11,350 mm/s
- joint_ranges
- J1: 340°, J2: 306°, J4: 720°
- power_supply
- 1-phase 200–230 VAC, 1500 VA
Price
No public price — contact the supplier for a quote.
Good · Bad · Ugly
Evidence-graded claims from the Mitsubishi Electric Robotics deep report
Mitsubishi Electric's ASSISTA RV-5 series collaborative robot is purpose-built for safe side-by-side human operation via collision detection and force limiting.
Claim originates solely from Mitsubishi Electric's own vendor/educational resource page [5]; no independent safety certification body, customer, or third-party tester has verified the collision detection or force-limiting performance in the dossier.
from Mitsubishi Electric Robotics deep report →Realtime Robotics technology enables industrial robots to autonomously plan and execute collision-free paths in real time, reacting to dynamic obstacles without human intervention.
Confirmed as a strategic investment by both a vendor press release [1] and MassRobotics news coverage [4], but neither source independently validates real-world autonomous collision-free performance; actual field deployment outcomes remain unverified.
from Mitsubishi Electric Robotics deep report →Melco Mobility Solutions (Mitsubishi Electric group) ordered ~100 Cartken Hauler autonomous robots for deployment in Japanese industrial facilities in FY2025.
The order quantity and deployment intent are stated in a Cartken press release [7] — a vendor/partner source, not an independent reporter or customer audit — so the order's fulfillment and actual operational deployment remain unconfirmed.
from Mitsubishi Electric Robotics deep report →Mitsubishi Electric's articulated robots cover a payload range of 2–20 kg with reach up to 1388 mm, featuring AC servo drives and absolute encoders.
Specifications are drawn from Mitsubishi Electric's own product catalogue [3] and a distributor page [2]; no independent benchmark test or third-party teardown in the dossier corroborates these figures.
from Mitsubishi Electric Robotics deep report →
Mitsubishi Electric plans to integrate Realtime Robotics motion planning into 3D simulators and digital twin software to optimize manufacturing workcells.
This is stated only as a forward-looking plan in a vendor press release [1]; no independent source confirms the integration has been completed, shipped, or validated by any customer or third party.
from Mitsubishi Electric Robotics deep report →Mitsubishi Electric's Cartken Hauler AMRs are deployed across factories, warehouses, logistics, medical, and life sciences facilities in Japan.
The multi-sector deployment claim comes exclusively from the Cartken press release [7]; no independent customer, journalist, or regulator has confirmed active operation across all five named sectors, making this a marketing assertion rather than a verified deployment footprint.
from Mitsubishi Electric Robotics deep report →
